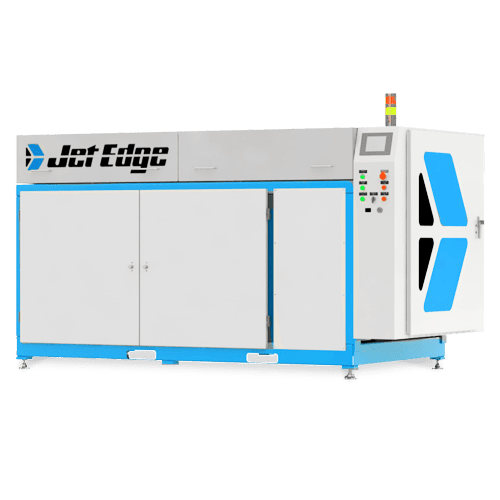

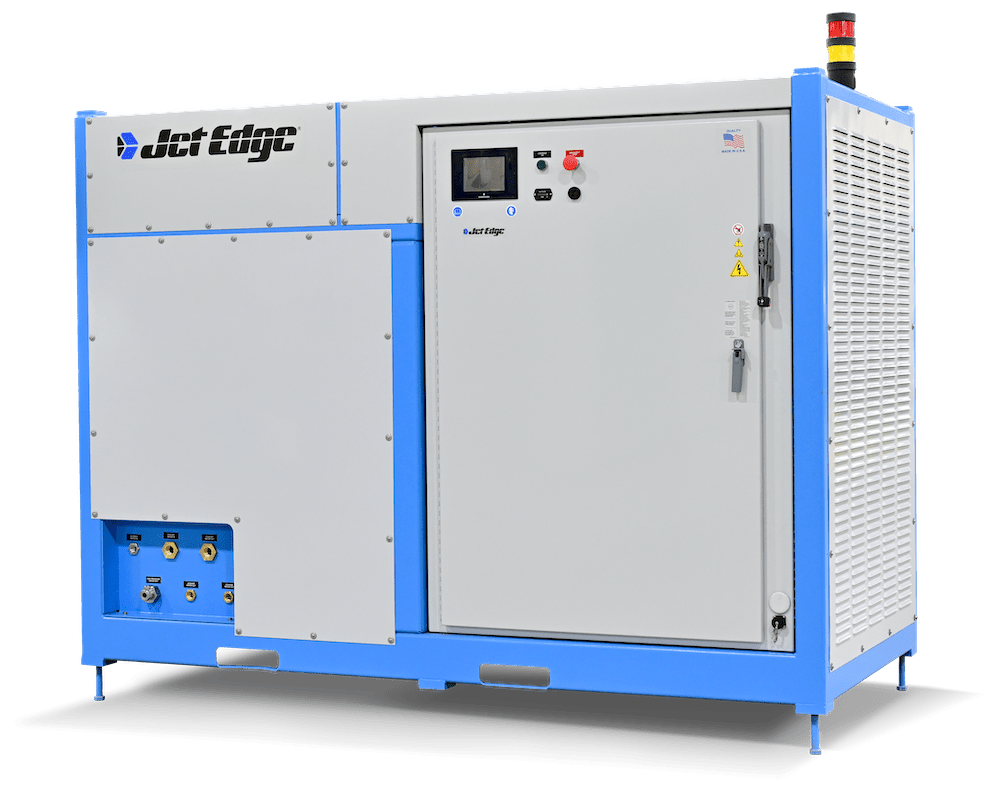

IP60-200 Waterjet Intensifier Pump

IP60-200

WATERJET INTENSIFIER PUMP

High Velocity Stream of Ultra High Pressure Water

The IP60-200 is a waterjet pump beast. With a 4.0 gpm flow rate at 55,000 psi dynamic, you can run up to four 15/45 orifice/ nozzle combinations to cut through thick material and generate four parts at a time. You’ll be able to cut your application’s material and time spent on the job with this versatile pump.

  • Rated pressure: 60,000 psi (4,100 bar)
  • UHP flow rate: 4.0 gpm (15.2 lpm)
  • Max rated orifice size .28 in (.71 mm)
  • Single piston, dual plunger, reciprocating pump
  • Motor output: 200 hp (149 kw)
Category:

Description

CONSTRUCTION

  • Heavy-gauge sheet metal covers
  • Rugged all-steel welded framework
  • Hinged cover & quick-remove access covers

CONTROLS

  • UL Certified electrical panel
  • Safety shutdown systems
  • Automatic safety pressure bleed-down valve
  • Optional advanced control package

INTENSIFIER PUMP

  • Double, 2 quarts (1.9 liters) attenuator
  • Single piston, dual plunger, reciprocating pump
  • Rated Pressure: 60,000 psi (4100 bar)
  • UHP flow rate: 4.0 gpm (15.2 lpm)
  • Max rated orifice size .28 in (.71 mm)

ELECTRIC MOTOR

  • Motor output: 200 hp (149 kw)
  • TEFC NEMA premium efficiency motor
  • Full load amps @ 460vac: (60Hz) 240
  • Full load amps @ 230vac: (60Hz) 480
  • Full load amps @ 380vac: (50Hz) 288

SIZE

  • Length: 95 in (2420 mm)
  • Width: 60 in (1530 mm)
  • Height: 60 in (1530 mm)
  • Approximate weight with fluid: 6,200 lbs. (2812 kg)

WATER/ENVIRONMENT

  • Low-pressure water supply requirement 3.3 gpm (12.5 lpm) @ 60 psi (4.1 bar) min.
  • Max temp 70ºF (21ºC)
  • Ambient temperature: 50-100ºF (10-37º C)

HYDRAULICS

  • Axial piston, variable displacement, pressure-compensated hydraulic pump
  • Thermostatically-controlled cooling loop
  • Hydraulic accumulator prolongs component life and improves output quality
  • Reservoir capacity: 104 gallons (394 liters)

WARRANTY

  • 1-year or 2,000-hour pump warranty
  • 2-year or 4,000-hour hydraulic circuit warranty
  • Lifetime factory product training
