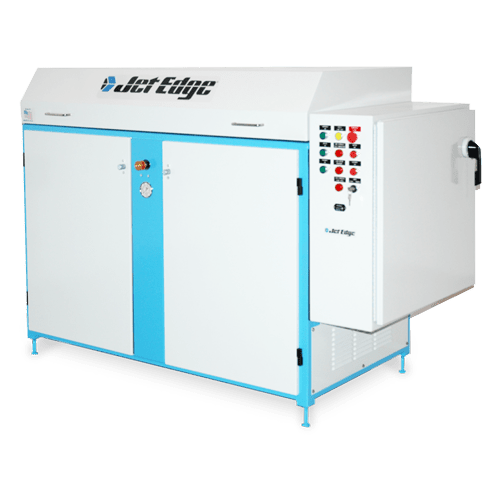

IP60-30 Waterjet Intensifier Pump

IP60-30

WATERJET INTENSIFIER PUMP

High Velocity Stream of Ultra High Pressure Water

The IP60-30 is designed for shops that desire the reliability of a hydraulic intensifier pump, but have limited power. This pump is capable of producing 0.6 gpm (2.3 lpm) of UHP water at a continuous operating pressure of 55,000 psi. It includes a hydraulic accumulator to provide smoother hydraulic pressure, reduce spikes, and prolong hydraulic pump life.

  • Rated pressure: 60,000 psi (4,100 bar)
  • UHP flow rate: 0.6 gpm (2.3 lpm)
  • Max rated orifice size .010 in (.25 mm)
  • Single piston, dual plunger, reciprocating pump
  • Motor output: 30 hp (22 kw)
Category:

Description

CONSTRUCTION

  • Heavy-gauge sheet metal covers
  • Rugged all-steel welded framework
  • Hinged cover & quick-remove access covers

CONTROLS

  • UL Certified electrical panel
  • Safety shutdown systems
  • Automatic safety pressure bleed-down valve

INTENSIFIER PUMP

  • Single, 1 quart (0.9 liters) attenuator
  • Single piston, dual plunger, reciprocating pump
  • Rated pressure: 60,000 psi (4100 bar)
  • UHP flow rate: 0.6 gpm (2.3 lpm)
  • Max rated orifice size .010 in (.25 mm)

ELECTRIC MOTOR

  • Motor output: 30 hp (22 kw)
  • TEFC NEMA premium efficiency motor
  • Full load amps @ 460vac: (60Hz) 37
  • Full load amps @ 230vac: (60Hz) 74

SIZE

  • Length: 72 in (1,880 mm)
  • Width: 32 in (940 mm)
  • Height: 53 in (1,350 mm)
  • Approximate weight with fluid: 2150 lbs. (975 kg)

WATER/ENVIRONMENT

  • Low-pressure water supply requirement 1.2 gpm (4.5 lpm) @ 60 psi (4.1 bar) min.
  • Max temp 70ºF (21ºC)
  • Ambient temperature: 50-100ºF (10-37º C)

HYDRAULICS

  • Axial piston, variable displacement, pressure-compensated hydraulic pump
  • Thermostatically-controlled cooling loop
  • Hydraulic accumulator prolongs component life and improves output quality
  • Reservoir capacity: 30 gallons (113 liters)

WARRANTY

  • 1-year or 2,000-hour pump warranty
  • 2-year or 4,000-hour hydraulic circuit warranty
  • Lifetime factory product training
