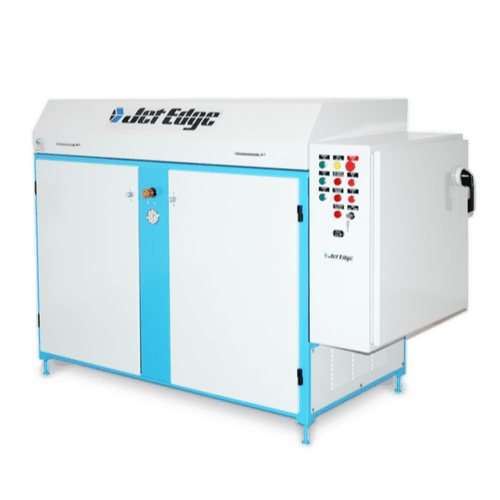

IP60-50 Waterjet Intensifier Pump

IP60-50 – I’M RETIRED

But don’t worry! We continue to support you.
See our upgraded model, the HERO 50 with Jet Smart controls.

WATERJET INTENSIFIER PUMP

High Velocity Stream of Ultra High Pressure Water

The IP60-50 Waterjet Intensifier Pump is your intro to pumps. Dependable and easy to maintain, it has the ability to cut and trim a large array of materials including heatsensitive, delicate, and tough substances. This Intensifier Pump is perfect for robotic, mobile, and motion system cutting applications. Jet Edge can provide an engineering analysis and customized solution to meet your application needs.

  • Rated pressure: 60,000 psi (4,100 bar)
  • UHP flow rate: 1.0 gpm (3.7 lpm)
  • Max rated orifice size: 0.015 in (0.38 mm)
  • Single piston, dual plunger intensifier with tie rod design
  • Motor output: 50 hp (37 kw)
Category:

Description

CONSTRUCTION

  • Heavy-gauge sheet metal covers
  • Rugged all-steel welded framework
  • Hinged cover & quick-remove access covers

CONTROLS

  • UL Certified electrical panel
  • Wye-Delta soft start
  • Safety shutdown systems
  • Automatic safety pressure bleed-down valve

INTENSIFIER PUMP

  • Single, 1 quart (0.9 liters) attenuator
  • Single piston, dual plunger intensifier with tie rod design
  • Optional redundant intensifier
  • Rated pressure: 60,000 psi (4,100 bar)
  • UHP flow rate: 1.0 gpm (3.7 lpm)
  • Max rated orifice size: 0.015 in (0.38 mm)

ELECTRIC MOTOR

  • Motor output: 50 hp (37 kw)
  • TEFC NEMA premium efficiency motor
  • Full load amps @ 460vac: (60Hz) 60
  • Full load amps @ 230vac: (60Hz) 120

SIZE

  • Length: 72 in (1,880 mm)
  • Width: 34 in (940 mm)
  • Height: 53 in (1,350 mm)
  • Approximate weight with fluid: 2,150 lbs. (975 kg)

WATER/ENVIRONMENT

  • Low-pressure process water supply requirement: 2.0 gpm (7.6 lpm) @ 60 psi (4 bar) min.
  • Max water temp: 70ºF (21ºC)
  • Ambient air temperature: 50–100ºF (10–37ºC)

HYDRAULICS

  • Axial piston, variable displacement, pressure-compensated hydraulic pump
  • Thermostatically-controlled cooling loop (requires additional water supply)
  • Hydraulic accumulator prolongs component life and improves output quality
  • Reservoir capacity: 35 gallons (135 liters)

WARRANTY

  • 1-year or 2,000-hour pump warranty
  • 2-year or 4,000-hour hydraulic circuit warranty
  • Lifetime factory product training
