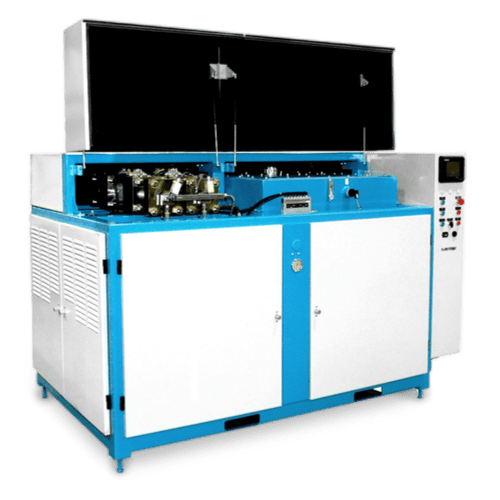

IP60-150 Waterjet Intensifier Pump

IP60-150

WATERJET INTENSIFIER PUMP

High Velocity Stream of Ultra High Pressure Water

The IP60-150 reigns supreme and provides thicker, better and tougher cutting solutions. Packed with power, this intensifier pump is capable of running multiple cutting heads with high abrasive content for high speed, high finish accuracy. This is the pump of choice for large table cutting, surface preparation applications and mobile cutting. Contact Jet Edge for custom solutions and a full engineering analysis of your application.

  • Rated pressure: 60,000 psi (4,100 bar)
  • UHP flow rate: 3.0 gpm (11.4 lpm)
  • Max rated orifice size .025 in (.64 mm)
  • Single piston, dual plunger, reciprocating pump
  • Motor output: 150 hp (112 kw)
Category:

Description

CONSTRUCTION

  • Heavy-gauge sheet metal covers
  • Rugged all-steel welded framework
  • Hinged cover & quick-remove access covers

CONTROLS

  • UL Certified electrical panel
  • Safety shutdown systems
  • Automatic safety pressure bleed-down valve
  • Optional advanced control package

INTENSIFIER PUMP

  • Double, 2 quarts (1.9 liters) attenuator
  • Single piston, dual plunger, reciprocating pump
  • Rated pressure: 60,000 psi (4,100 bar)
  • UHP flow rate: 3.0 gpm (11.4 lpm)
  • Max rated orifice size .025 in (.64 mm)

ELECTRIC MOTOR

  • Motor output: 150 hp (112 kw)
  • TEFC NEMA premium efficiency motor
  • Full load amps @ 460vac: (60Hz) 177
  • Full load amps @ 230vac: (60Hz) 354

SIZE

  • Length: 83 in (2,110 mm)
  • Width: 56 in (1,430 mm)
  • Height: 56 in (1,430 mm)
  • Approximate weight with fluid: 6,800 lbs. (3,100 kg)

WATER/ENVIRONMENT

  • Low-pressure water supply requirement 5.2 gpm (19.7 lpm) @ 60 psi (4 bar) min.
  • Max temp 70°F (21°C)
  • Ambient temperature: 50°-100°F (10°-37°C)

HYDRAULICS

  • Axial piston, variable displacement, pressure-compensated hydraulic pump
  • Thermostatically-controlled cooling loop
  • Hydraulic accumulator prolongs component life and improves output quality
  • Reservoir capacity: 103 gallons (390 liters)

WARRANTY

  • 1-year or 2,000-hour pump warranty
  • 2-year or 4,000-hour hydraulic circuit warranty
  • Lifetime factory product training
