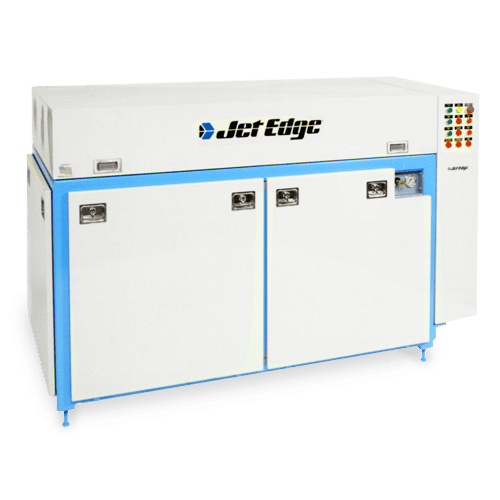

IP60-75 Waterjet Intensifier Pump

IP60-75

WATERJET INTENSIFIER PUMP

High Velocity Stream of Ultra High Pressure Water

The IP60-75 is our straight-to-the-point waterjet. You’ll be able to cut your application’s material and time spent on the job. It is perfect for moderately intense cutting projects. With the ability to run three 0.010″/0.030″ orifice/nozzle combinations, a 1.5 gpm flow rate, and a dynamic pressure of 55,000 psi, this pump will not let your application down.

  • Rated pressure: 60,000 psi (4,100 bar)
  • UHP flow rate: 1.5 gpm (5.7 lpm)
  • Max rated orifice size .018 in (.46 mm)
  • Single piston, dual plunger, reciprocating pump
  • Motor output: 75 hp (56 kw)
Category:

Description

CONSTRUCTION

  • Heavy-gauge sheet metal covers
  • Rugged all-steel welded framework
  • Hinged cover & quick-remove access covers

CONTROLS

  • UL Certified electrical panel
  • Safety shutdown systems
  • Automatic safety pressure bleed-down valve
  • Optional advanced control package

INTENSIFIER PUMP

  • Single, 1 quart (0.9 liters) attenuator
  • Single piston, dual plunger intensifier with tie rod design
  • Rated pressure: 60,000 psi (4100 bar)
  • UHP flow rate: 1.5 gpm (5.7 lpm)
  • Max rated orifice size .018 in (.46 mm)

ELECTRIC MOTOR

  • Motor output: 75 hp (56 kw)
  • TEFC NEMA premium efficiency motor
  • Full load amps @ 460vac: (60Hz) 89
  • Full load amps @ 230vac: (60Hz) 178

SIZE

  • Length: 86 in (2190 mm)
  • Width: 40 in (1120 mm)
  • Height: 55 in (1020 mm)
  • Approximate weight with fluid: 4,900 lbs. (2222 kg)

WATER/ENVIRONMENT

  • Low-pressure water supply requirement 3.3 gpm (12.5 lpm) @ 60 psi (4.1 bar) min.
  • Max temp 70ºF (21ºC)
  • Ambient temperature: 50-100ºF (10-37º C)

HYDRAULICS

  • Axial piston, variable displacement, pressure-compensated hydraulic pump
  • Thermostatically-controlled cooling loop
  • Hydraulic accumulator prolongs component life and improves output quality
  • Reservoir capacity: 55 gallons (209 liters)

WARRANTY

  • 1-year or 2,000-hour pump warranty
  • 2-year or 4,000-hour hydraulic circuit warranty
  • Lifetime factory product training
