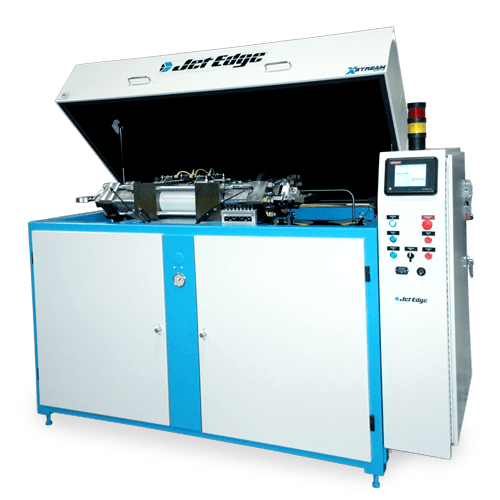

XP90-100 Waterjet Intensifier Pump

XP90-100

WATERJET INTENSIFIER PUMP

High Velocity Stream of Ultra High Pressure Water

The XP90-100 X-Stream Waterjet Pump is backed by nearly 10 years of extensive research and development in hyperpressure technology. It typically reduces taper by up to 0.001”. This pump supports a 75,000 psi continuous operating pressure, capable of producing flow rates of 1.41 gpm and supports up to a .015” orifice—increasing productivity for a diverse range of materials.

  • Rated pressure: 90,000 psi (6,200 bar)
  • UHP flow rate: 1.41 gpm (5.3 lpm)
  • Max rated orifice size .015 in (.38 mm)
  • Single piston, dual plunger, reciprocating pump
  • Motor output: 100 hp (75 kw)
Category:

Description

CONSTRUCTION

  • Heavy-gauge sheet metal covers
  • Rugged all-steel welded framework
  • Hinged cover & quick-remove access covers

CONTROLS

  • UL Certified electrical panel
  • Safety shutdown systems
  • Automatic safety pressure bleed-down valve
  • Optional advanced control package

INTENSIFIER PUMP

  • Double, 2 quarts (1.9 liters) attenuator
  • Single piston, dual plunger, reciprocating pump
  • Rated pressure: 90,000 psi (6200 bar)
  • UHP flow rate: 1.41 gpm (5.3 lpm)
  • Max rated orifice size .015 in (.38 mm)
  • 100,000 psi-rated fittings and tubing

ELECTRIC MOTOR

  • Motor output: 100 hp (75 kw)
  • TEFC NEMA premium efficiency motor
  • Full load amps @ 460vac: (60Hz) 124
  • Full load amps @ 230vac: (60Hz) 248

SIZE

  • Length: 86 in (2110 mm)
  • Width: 40 in (1020 mm)
  • Height: 55 in (1400 mm)
  • Approximate weight with fluid: 4,900 lbs. (2222 kg)

WATER/ENVIRONMENT

  • Low-pressure water supply requirement 2.0 gpm (7.57 lpm) @ 40 psi (3 bar) min.
  • Max temp 70ºF (21ºC)
  • Ambient temperature: 50-100ºF (10-37º C)

HYDRAULICS

  • Axial piston, variable displacement, pressure-compensated hydraulic pump
  • Thermostatically-controlled cooling loop
  • Hydraulic accumulator prolongs component life and improves output quality
  • Reservoir capacity: 55 gallons (208 liters)

WARRANTY

  • 1-year or 2,000-hour pump warranty
  • 2-year or 4,000-hour hydraulic circuit warranty
  • Lifetime factory product training
