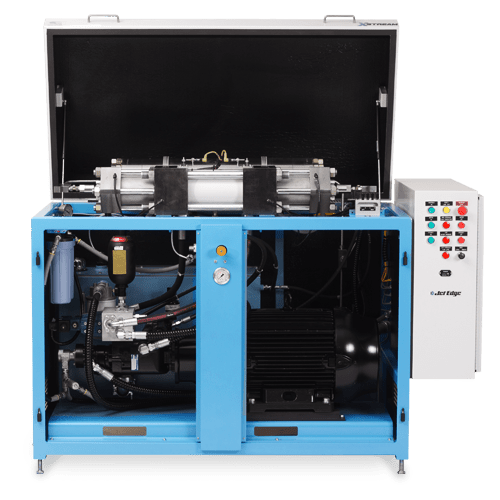

XP90-50 Waterjet Intensifier Pump

XP90-50

WATERJET INTENSIFIER PUMP

High Velocity Stream of Ultra High Pressure Water

The XP90-50 X-Stream Waterjet Pump is backed by nearly 10 years of extensive research and development in hyper-pressure technology. Its fittings and tubings are rated for 100,000 psi. This pump supports a 75,000 psi continuous operating pressure, capable of producing flow rates of .7 gpm and supports up to a .011” orifice—increasing productivity for a diverse range of materials.

  • Rated pressure: 90,000 psi (6,200 bar)
  • UHP flow rate: .70 gpm (2.61 lpm)
  • Max rated orifice size .011 in (.28 mm)
  • Single piston, dual plunger reciprocating pump
  • Motor output: 50 hp (37 kw)
Category:

Description

CONSTRUCTION

  • Heavy-gauge sheet metal covers
  • Rugged all-steel welded framework
  • Hinged cover & quick-remove access covers

CONTROLS

  • UL Certified electrical panel
  • Safety shutdown systems
  • Automatic safety pressure bleed-down valve
  • Optional advanced control package

INTENSIFIER PUMP

  • Single, 2 quarts (1.9 liters) attenuator
  • Single piston, dual plunger, reciprocating pump
  • Rated pressure: 90,000 psi (6200 bar)
  • UHP flow rate: .70 gpm (2.61 lpm)
  • Max rated orifice size .011 in (.28 mm)
  • 100,000 psi-rated fittings and tubing

ELECTRIC MOTOR

  • Motor output: 50 hp (37 kw)
  • TEFC NEMA premium efficiency motor
  • Full load amps @ 460vac: (60Hz) 60
  • Full load amps @ 230vac: (60Hz) 120
  • Full load amps @ 380vac: (50Hz) 75

SIZE

  • Length: 72 in (1,830 mm)
  • Width: 32 in (820 mm)
  • Height: 53 in (1,350 mm)
  • Approximate weight with fluid: 2,900 lbs. (1310 kg)

WATER/ENVIRONMENT

  • Low-pressure water supply requirement 1.45 gpm (5.49 lpm) @ 60 psi (4 bar) min.
  • Max temp 70ºF (21ºC)
  • Ambient temperature: 50-100ºF (10-37º C)

HYDRAULICS

  • Axial piston, variable displacement, pressure-compensated hydraulic pump
  • Thermostatically-controlled cooling loop
  • Hydraulic accumulator prolongs component life and improves output quality
  • Reservoir capacity: 36 gallons (136 liters)

WARRANTY

  • 1-year or 2,000-hour pump warranty
  • 2-year or 4,000-hour hydraulic circuit warranty
  • Lifetime factory product training
